Detectable Warning Requirements: The 2026 Compliance Guide

August 24, 2026
Detectable Warning Requirements: The 2026 Compliance Guide

Detectable warnings are required at transit platform edges and transit-facility curb ramps under the 2010 ADA Standards, and at nearly every curb ramp, blended transition, and pedestrian crossing in the public right-of-way once PROWAG or a local agency adopts it as the governing standard. The technical target hasn't changed in over a decade: truncated domes with a base diameter of 0.9 to 1.4 inches, a height around 0.2 inches (5 mm), and center-to-center spacing of 1.6 to 2.4 inches, running the full width of the ramp or platform edge for a minimum depth of at least two feet in the direction of travel.

That single sentence resolves most of the confusion architects and municipal planners run into. DOJ's 2010 Standards apply narrowly outside transit settings, while the Access Board's PROWAG closes that gap for anything in the public right-of-way, and DOT/FHWA funding can trigger the requirement regardless of which rulebook a site would otherwise follow.

For plan notes and specifications, cite these three sources directly:

  • 2010 ADA Standards, Section 705 (also referenced as 4.29/4.7.7 in older code cross-references) for dome geometry and platform edge rules.
  • PROWAG R305 for right-of-way placement, extent, and the 24-inch minimum depth rule.
  • DOT/FHWA guidance for federally funded curb ramps and transit facility applicability.

Pro Tip: Note both the ADA and PROWAG citation numbers on your drawings, even if only one technically governs. Plan reviewers increasingly expect cross-referenced compliance language, and it prevents a resubmittal when jurisdiction gets questioned mid-review.

Key Takeaways

Detectable warning compliance depends on matching the right federal standard, ADA 2010, DOT/FHWA, or PROWAG, to the project type, then executing dome geometry and extent rules precisely.

PointDetails
Confirm governing standard firstTransit and federally funded projects follow DOT/FHWA; public right-of-way work should default to PROWAG.
Match dome geometry exactlyBase diameter 0.9 to 1.4 inches, height near 0.2 inches, spacing 1.6 to 2.4 inches center-to-center.
Extend surfaces fullyMinimum two feet deep, running the full width of the ramp run or platform edge.
Never bridge expansion jointsInstalling panels across joints causes early adhesive failure and is a top cause of rework.
Require certification and samples earlyManufacturer certification and job-site mock-ups should be locked into contracts before installation starts.

Table of Contents

What Are the Detectable Warning Requirements Under Federal Law?

Three federal frameworks govern detectable warnings, and they don't all apply to the same projects. Getting this wrong is the single most common reason plan reviews get bounced back.

DOJ's 2010 ADA Standards apply to sites and facilities covered under Title II (state and local government) and Title III (public accommodations). Within that scope, detectable warnings are mandatory at transit platform boarding edges and at curb ramps located within transit facilities. Curb ramps at a standalone retail plaza or a private office park, governed by DOJ alone with no transit or federal funding involved, technically fall outside this specific mandate.

DOT and FHWA guidance extends the requirement well beyond that narrow reading. Public transportation facilities such as rail stations and bus terminals fall under DOT standards, which require detectable warnings at platform edges as a matter of course. Federally funded highway and pedestrian projects carry their own applicability rules through FHWA policy memos, meaning a locally funded sidewalk project might dodge a federal mandate that the identical project next door, built with federal-aid highway dollars, cannot.

PROWAG is where most municipal work actually lives. The Access Board's Proposed Rights-of-Way Accessibility Guidelines cover curb ramps, sidewalks, street crossings, and pedestrian signals in the public right-of-way, and they require detectable warnings far more broadly than DOJ's site-based rules do. Many state DOTs and municipalities have already adopted PROWAG as their working standard even before its final federal rulemaking, because it's the only framework that actually addresses street-level pedestrian infrastructure in detail.

Here's the practical decision rule for any project inside a public right-of-way:

  1. Check whether your local agency has formally adopted PROWAG or an equivalent local ADA transition plan.
  2. If yes, treat PROWAG's placement and extent rules as your baseline, even where DOJ's 2010 Standards would technically be silent.
  3. If the project touches transit funding or FHWA dollars, layer DOT's transit-specific rules on top, since they don't replace PROWAG, they add to it.
  4. When in doubt, specify to the stricter of the two. Reviewers rarely reject a curb ramp for exceeding compliance.

What Are the Exact Truncated Dome Specifications?

The dome geometry in the 2010 ADA Standards hasn't shifted since it was written, and it's worth memorizing rather than looking up every time.

  • Base diameter: 0.9 to 1.4 inches (23 to 36 mm)
  • Top diameter: 50% to 65% of the base diameter
  • Dome height: approximately 0.2 inches (5 mm)
  • Center-to-center spacing: 1.6 to 2.4 inches (41 to 61 mm)
  • Base-to-base spacing: 0.65 inches (16 to 17 mm) minimum

By the numbers: A compliant dome field packs roughly 25 to 36 domes per square foot depending on spacing choice within the allowed range, which is why manufacturer product sheets almost always specify a single fixed spacing rather than the full tolerance band.

Domes are laid out in a square grid in the vast majority of installations, though radial patterns are permitted around curved platform edges and certain curb ramp flares, provided the same base spacing rules hold true along any line of travel. When a panel or cast-in-place section has to be cut to fit a curved or irregular edge, partial domes at the perimeter are acceptable, but the field itself must maintain full compliant geometry everywhere a pedestrian would actually walk.

Extent is where a lot of otherwise-correct installations still fail inspection. PROWAG requires a minimum depth of 24 inches (610 mm) measured in the direction of travel, and the width must run the full width of the curb ramp run or the full width of the platform boarding edge, not just a centered strip. There's no shortcut version of this rule: a narrower or shorter warning surface simply doesn't meet the standard, regardless of how correct the dome geometry inside it happens to be.

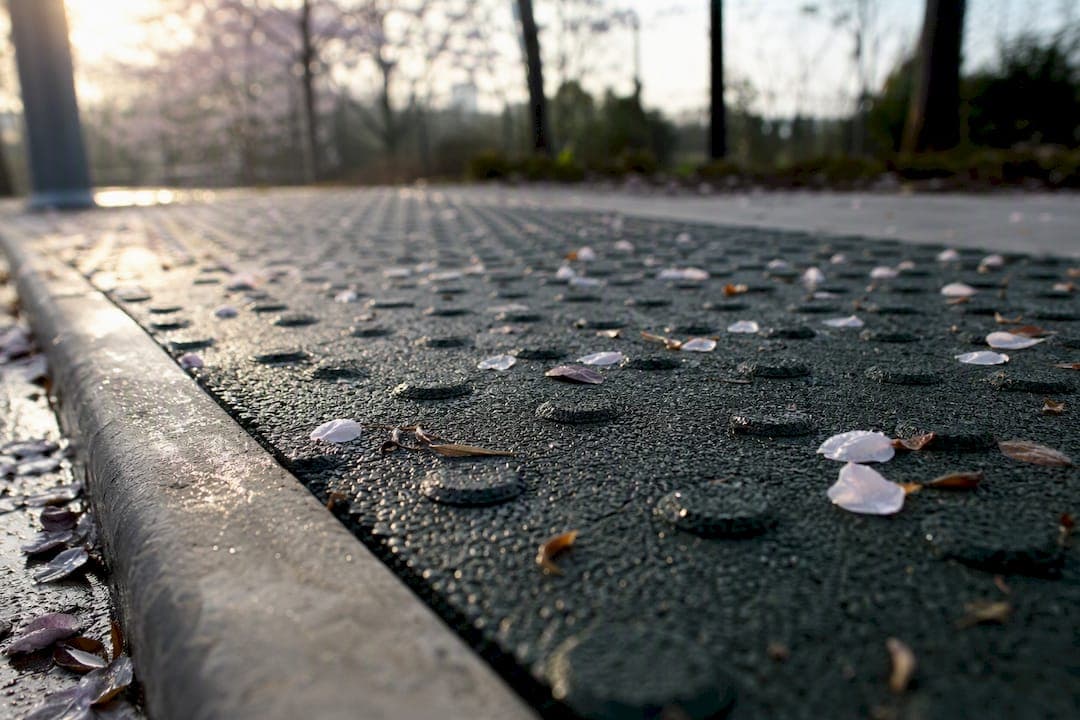

Contrasting truncated dome surface installation

Contrast is the other non-negotiable. The surface must contrast visually with the adjoining walking surface, meaning light-on-dark or dark-on-light, and that contrast has to hold up over years of UV exposure and foot traffic, not just at the moment of installation. Faded or worn contrast is one of the most common findings in post-installation ADA audits, which is why durable pigment-through materials outperform surface-applied coatings that wear off long before the substrate does.

Where Exactly Do Detectable Warnings Need to Be Installed?

Placement rules vary by configuration, and this is where field crews most often improvise incorrectly.

  1. Perpendicular curb ramps need the detectable warning at the bottom of the ramp run, spanning its full width, typically set back 6 to 8 inches from the back of curb so the domes sit clear of the gutter pan while still reading as continuous with the ramp surface.
  2. Parallel curb ramps place the warning across the full width of the ramp at the flush transition to the street, generally right at the point where the sidewalk grade meets the roadway.
  3. Blended transitions, the curbless, gradually sloped intersections increasingly common in newer complete-streets designs, require the detectable warning at the edge closest to the vehicular way, positioned so it doesn't bleed onto the flared sides of the transition.
  4. Transit platform boarding edges need warning surfaces running the full unprotected length of the platform edge, not just at marked boarding points, per DOT transit facility rules.
  5. Refuge islands in the middle of wide crossings need detectable warnings on both approach edges if the island is large enough to serve as a pedestrian stopping point.
  6. At-grade rail crossings require detectable warnings at the boundary between the pedestrian route and the rail right-of-way, spaced back far enough to keep pedestrians clear of moving rail equipment.

PROWAG's R305 technical guidance also specifies dome alignment relative to the grade break: rows should run perpendicular to the transition between the ramp run and the street so wheelchair users don't have to track directly across raised domes, and so a cane sweep picks up a consistent tactile signal. Driveway crossings that function as pedestrian routes generally need the same treatment as curb ramps; purely vehicular driveway aprons with no pedestrian crossing function typically don't. Certain on-street parking access points without a designated pedestrian route across them fall outside the requirement entirely, which is a distinction worth confirming with your local ROW authority before assuming either way.

What Installation Materials and Methods Meet Compliance?

Three product categories dominate the market, and each pairs with a different substrate.

  • Cast-in-place panels get embedded directly into wet concrete and work best on new PCC (portland cement concrete) construction, where the panel becomes structurally integrated with the pour.
  • Preformed panels get anchored mechanically or adhered to cured concrete or asphalt, making them the practical choice for retrofits where you can't schedule a wet pour.
  • Surface-applied tiles, including rubber composite systems like the Rubberway® materials Ecotecrubber installs across Florida, adhere to prepared PCC or HMA (hot mix asphalt) surfaces and offer strong flexibility for municipal retrofit programs where matching an existing walkway profile matters more than replacing it outright.

A few installation rules apply across every product type. Detectable warning units should never bridge an expansion joint between curb and sidewalk; doing so undermines adhesion at the joint and is one of the fastest routes to early panel failure. Perimeter elevation differences between the warning surface and the adjoining walkway generally need to stay within a small fraction of an inch, since anything larger becomes both a trip hazard and an inspection failure point.

Pro Tip: Require a lift-and-inspect check on the first installed panel of every project before the crew sets the rest. Catching a substrate prep problem on panel one saves you from redoing an entire block.

Specify manufacturer-published adhesive or anchoring methods rather than a generic "installer's choice" clause, and require documented cure times before the surface opens to foot traffic. Durability testing, freeze-thaw cycling and compressive strength figures among them, should appear in the manufacturer's submittal data, and your acceptance criteria should reference those published values directly rather than a vague "durable" standard that gives a contractor room to argue later.

When Are Detectable Warnings Not Legally Required?

The 2010 ADA Standards include a genuine safe-harbor provision: elements that complied with the 1991 ADAAG and haven't been altered since generally don't need retrofitting purely because the newer standard exists. That protects older sidewalks and curb ramps built to the earlier rule from a blanket retrofit mandate.

That protection has real limits, though.

  • Alterations trigger compliance. Once a curb ramp or platform edge undergoes an alteration, the safe-harbor generally no longer applies to that element, and it needs to meet current standards.
  • The 20% disproportionate-cost rule lets an agency limit accessibility upgrades on an alteration project to 20% of the total alteration cost, but detectable warnings are typically treated as a priority item within that budget, not something to defer first.
  • Federal funding changes the math entirely. A DOJ-only project might have wiggle room a DOT or FHWA-funded project simply doesn't, since accepting federal transportation dollars generally means accepting DOT's detectable warning requirements regardless of what DOJ alone would demand.
  • Liability drives municipal policy well past the legal floor. Many cities now specify detectable warnings on essentially every new or reconstructed curb ramp, transit-funded or not, because a pedestrian injury claim citing a missing warning surface is expensive to defend even when the underlying project was technically DOJ-only.

What Documentation Should Contracts Require Before Installation?

Procurement paperwork is where compliance either gets locked in early or falls apart during a rushed inspection later.

  1. Manufacturer certification, submitted well ahead of installation. Municipal specs like the NYC DDC standard commonly require certification at least 30 days before work begins, along with confirmation the product appears on an approved materials list.
  2. A job-site sample or mock-up, sized per the spec, reviewed and formally approved before full production installation starts. Some agencies require the sample removed after sign-off; others allow it to remain as the first installed unit.
  3. A field inspection checklist covering dome dimensions, spacing, color and contrast match against the submitted sample, adhesion or anchoring integrity, and complete as-built documentation for the project record.

How Should You Inspect and Maintain Installed Surfaces?

Detectable warnings degrade in predictable ways, and catching the early signs costs far less than a full panel replacement later.

  • Lifting or delamination at panel edges, usually the first sign of adhesive failure, especially in Florida's heat-cycle climate.
  • Cracking or dome wear from repeated wheel loading at high-traffic crossings.
  • Fading contrast, which quietly erodes the tactile surface's actual safety function even when the domes themselves are structurally intact.
  • Adhesive or anchor failure at joints, often traceable back to a panel installed across an expansion joint against manufacturer guidance.

A twice-yearly visual inspection, paired with a quick reseat or cleaning where minor lifting appears, catches most problems before they become full replacements. Keeping dated maintenance records also matters more than most agencies realize: when a slip-and-fall claim references a degraded warning surface, a documented inspection history is often the difference between a quick dismissal and a costly settlement.

What Are the Most Common Detectable Warning Installation Mistakes?

Most compliance failures trace back to a handful of repeat mistakes, not exotic edge cases.

  • Installing panels that bridge an expansion joint, which almost guarantees early adhesive failure.
  • Misaligning dome rows relative to the direction of travel instead of perpendicular to the grade break.
  • Skipping an on-site contrast check under actual daylight conditions, rather than trusting a color swatch reviewed indoors.
  • Failing to coordinate final paving and curb elevations before the warning surface goes down, leaving a perimeter lip that fails tolerance and creates a trip hazard.

Pro Tip: Build a manufacturer installation checklist into your contract documents as a required submittal, not a suggested reference. Crews that skip a step on a rubber composite system rarely realize it until the lift-and-inspect check, and it's far cheaper to catch during setting than after cure.

Why Trust This Guide on Detectable Warning Compliance?

Ecotecrubber, doing business as EcoTec Rubber Paving, installs Rubberway® rubber paving systems across Florida for municipalities, HOAs, and commercial property owners, and every ADA-compliant surface it builds has to satisfy the same dimensional and contrast rules covered above. The company is licensed and insured, and its crews work exclusively in rubber paving installation, which means compliance detail isn't a side consideration bolted onto a broader paving business.

For deeper reading on how these standards interact, see Ecotecrubber's breakdown of ADA versus PROWAG requirements and its guide to how rubber paving meets ADA standards for architects specifying materials.

If your project involves adjacent site furnishings, facility-management fencing specifications cover a related layer of municipal procurement worth coordinating early.

Get ADA-Compliant Rubber Paving Installed by Ecotecrubber

Specifying the right dome geometry on paper is one thing. Getting a durable, correctly contrasted surface into the ground, on schedule, without a perimeter tolerance failure, is another. Ecotecrubber's Rubberway® systems are built for exactly this: porous, crack-resistant rubber surfaces engineered for Florida's heat and rain cycles, installed with the anchoring and substrate prep that keeps detectable warnings performing for years instead of failing at the first freeze-thaw or storm season.

Browse the Rubberway® product line for technical specifications, or visit Ecotecrubber to start a project conversation for your municipal, commercial, or HOA paving work.

The Real Gap Isn't the Standards, It's Who Applies Them

The technical specs for detectable warnings have barely moved since 2010. What actually trips up projects is jurisdiction confusion, treating a PROWAG-governed right-of-way project as if DOJ's narrower transit-only rule applies, or assuming federal funding doesn't change the requirement when it demonstrably does.

The conventional advice, "check the ADA Standards," undersells how much of the real rulebook now lives in PROWAG and DOT/FHWA guidance rather than the 2010 Standards alone. Municipalities that adopt PROWAG proactively, before final federal rulemaking forces the issue, tend to avoid the retrofit scramble that hits agencies still relying on DOJ's narrower reading.

If you take one thing from this guide, prioritize confirming which standard governs before you touch dome geometry at all. A perfectly specified truncated dome field, installed under the wrong jurisdiction's placement rules, still fails inspection.

Frequently Asked Questions

Are detectable warnings required on every curb ramp? Not under DOJ's 2010 Standards alone, but PROWAG extends the requirement to most curb ramps in the public right-of-way, and many municipalities now apply that broader standard as policy regardless of strict DOJ jurisdiction.

What's the required depth for a detectable warning surface? A minimum of 24 inches (610 mm) in the direction of travel, spanning the full width of the ramp run or platform edge, per PROWAG.

Do older curb ramps need to be retrofitted with detectable warnings? Generally not if they complied with the 1991 ADAAG and haven't been altered since, thanks to the 2010 Standards' safe-harbor provision. Any alteration to that ramp typically ends the safe-harbor protection.

What contrast is required for detectable warning surfaces? The surface must contrast visually with the surrounding walkway, either light-on-dark or dark-on-light, and that contrast needs to remain visible over years of wear, not just at installation.

Frequently Asked Questions — overview diagram

Can detectable warning panels cross an expansion joint? No. Installing units that bridge an expansion joint between curb and sidewalk undermines adhesion and is one of the most common causes of early panel failure in the field.
